$339.00
SIMNET SimConnect Manager is used to calibrate the pedals and set deadzones, output curves and haptic feedback for each pedal.
SimHub (optional) drives telemetry-based haptic effects through the pedals’ haptic motors.
Order Processing
Sim Racing orders are typically processed within 1 to 4 business days, depending on current order volume. During peak periods such as holiday sales or promotional events, processing times may be longer.
Shipping Fees
Shipping is free on orders of $150.00 or more in Canada, or $200 or more in the United States, except for bulky items such as chassis, frames, and racing seats, which are subject to a fixed shipping fee.
Orders under their specific country’s treshold are subject to a flat shipping fee of $19.00.
Estimated Delivery Times
Estimated delivery times vary by location once the order has shipped.
Eastern Canada: approximately 3 business days
Central, Northern, and Western Canada: up to 5 business days
Delivery times are estimates and may vary depending on carrier delays or remote locations.
Tracking Information
Tracking information is provided once the order leaves our warehouse. You will receive a shipping confirmation email containing your tracking number as soon as it becomes available.
If you have not received tracking information yet, it means your order is still being prepared or processed.
Pre-Orders
Pre-order items are clearly identified on the product page. Estimated availability dates are provided as a reference and may change due to manufacturer or supplier delays.
By placing a pre-order, you acknowledge that shipment will occur once the item becomes available, not at the time of purchase.
Product Availability
Stock levels displayed on the website are indicative only and may not always reflect real-time availability.
If an item is unavailable or backordered, we will contact you as soon as possible to inform you of the expected restocking delay and discuss available options.
In some cases, an item marked as out of stock may be available, or an item shown as in stock may become unavailable due to high demand or supplier updates.

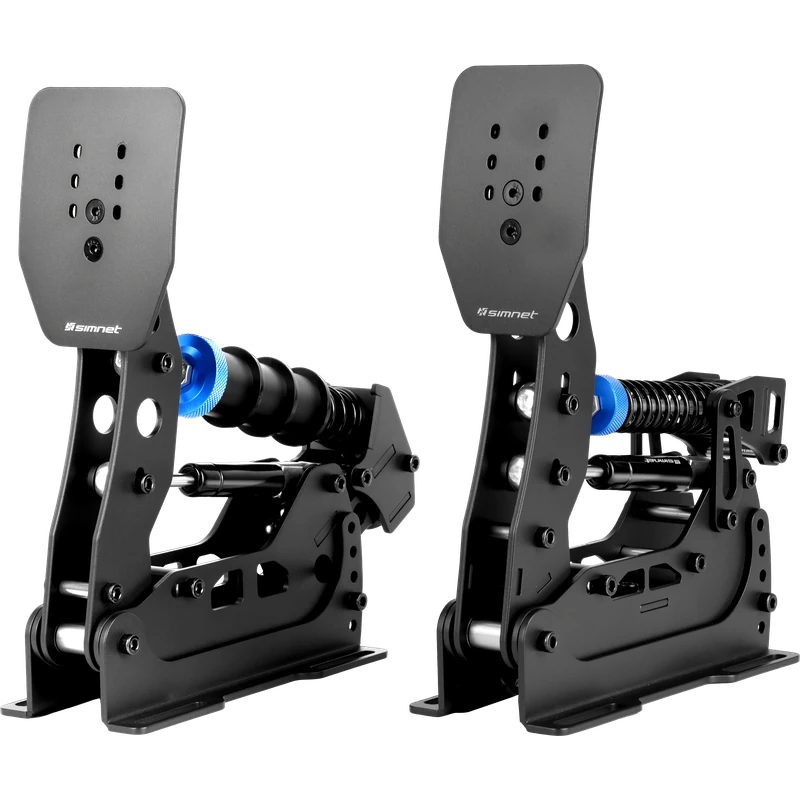

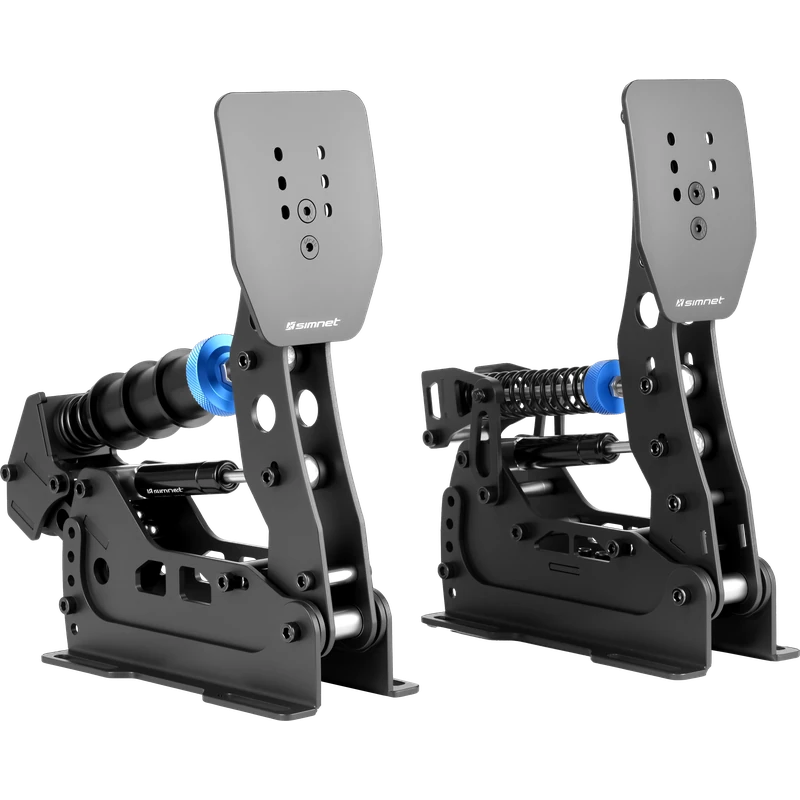

The SIMNET SP Evo Loadcell Pedals bring a load cell brake, a highly adjustable throttle and the SIMNET multi-function control box together in a 2-pedal set built for sim racers who want precise, repeatable inputs and room to grow. Nearly every part of the pedal feel can be tuned, from the angle and position of each pedal to its resistance and travel, so the set adapts to your driving position and style rather than the other way around. An optional clutch pedal, haptic motors, hydraulic link kit and baseplate with heel support let you expand it into a complete, immersive pedal system over time.

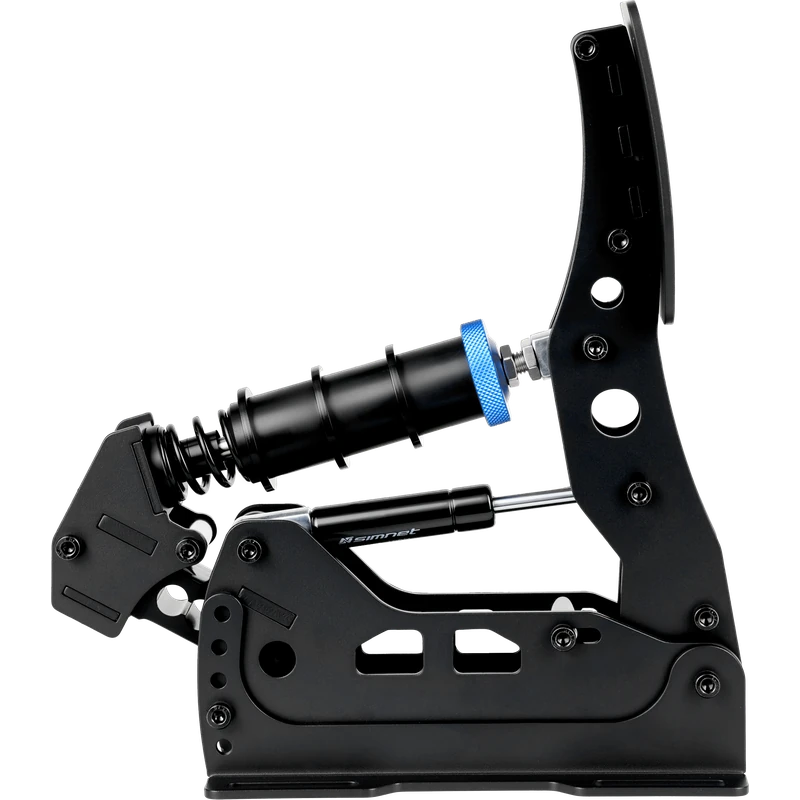

At the heart of the set is a 100 kg load cell brake sensor with 12-bit resolution, which responds to how hard you press rather than how far, for consistent, muscle-memory braking lap after lap. Sensor sensitivity can be set across three levels, and the included brake kit lets you build the feel you want: nine elastomers in three hardness levels (60A, 80A and 90A, three of each) give 27 combinations, while a long spring offers a softer, longer-travel feel. Add the four optional spring types (58, 97, 144 and 216 kg) and SIMNET quotes up to 343 possible brake pedal feels. Each pedal comes with a removable hydraulic damper for realistic resistance, and because the sensors work independently of the hydraulic system, removing a damper never affects the pedal’s core function.

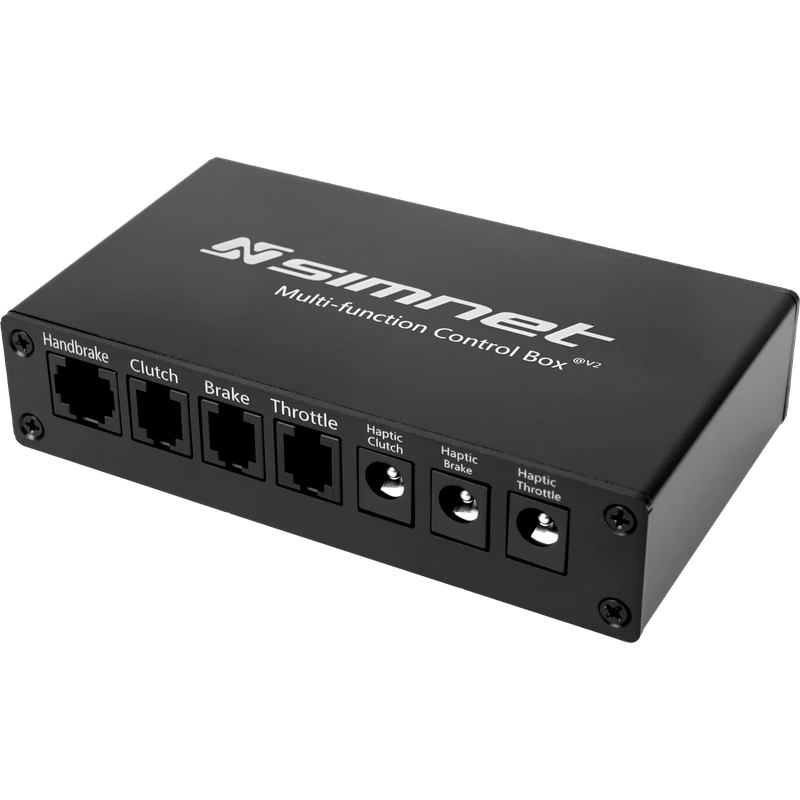

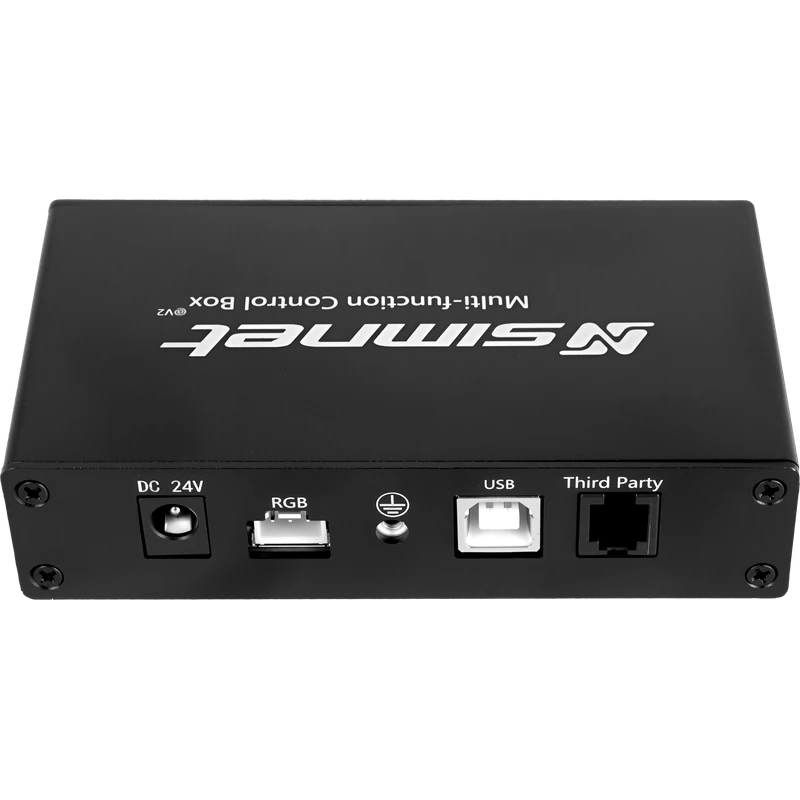

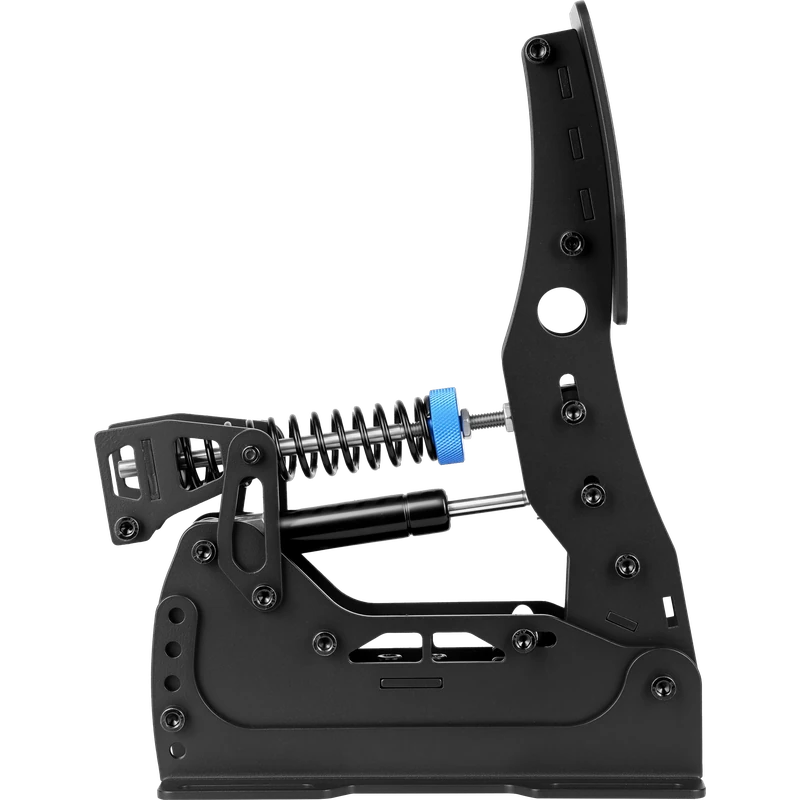

The pedals are CNC-cut from 3 mm high-strength stainless steel with an electrostatic powder-coated finish for rust protection, and precision bearings reduce static friction for stable, wobble-free travel. The throttle offers seamless pedal face height adjustment, adjustable spring and damper positions, a pre-load knob for initial resistance, plus angle and maximum travel settings, while the curved pedal faces follow the natural arch of the foot. Both pedals connect to the included control box, which adds three configurable haptic ports, an RGB lighting port and a third-party port, and everything is configured in SIMNET SimConnect Manager, with SimHub support for haptics. Please note the clutch pedal, haptic motors, power adaptor, hydraulic link kit and baseplate with heel support are sold separately.
