CONSPIT Link 2.0 is used to update the firmware and configure the RGB LEDs for gear position, RPM shift lights or status indicators.
SimHub (optional) maps the RGB LEDs to supported telemetry and status signals.
Order Processing
Sim Racing orders are typically processed within 1 to 4 business days, depending on current order volume. During peak periods such as holiday sales or promotional events, processing times may be longer.
Shipping Fees
Shipping is free on orders of $150.00 or more in Canada, or $200 or more in the United States, except for bulky items such as chassis, frames, and racing seats, which are subject to a fixed shipping fee.
Orders under their specific country’s treshold are subject to a flat shipping fee of $19.00.
Estimated Delivery Times
Estimated delivery times vary by location once the order has shipped.
Eastern Canada: approximately 3 business days
Central, Northern, and Western Canada: up to 5 business days
Delivery times are estimates and may vary depending on carrier delays or remote locations.
Tracking Information
Tracking information is provided once the order leaves our warehouse. You will receive a shipping confirmation email containing your tracking number as soon as it becomes available.
If you have not received tracking information yet, it means your order is still being prepared or processed.
Pre-Orders
Pre-order items are clearly identified on the product page. Estimated availability dates are provided as a reference and may change due to manufacturer or supplier delays.
By placing a pre-order, you acknowledge that shipment will occur once the item becomes available, not at the time of purchase.
Product Availability
Stock levels displayed on the website are indicative only and may not always reflect real-time availability.
If an item is unavailable or backordered, we will contact you as soon as possible to inform you of the expected restocking delay and discuss available options.
In some cases, an item marked as out of stock may be available, or an item shown as in stock may become unavailable due to high demand or supplier updates.

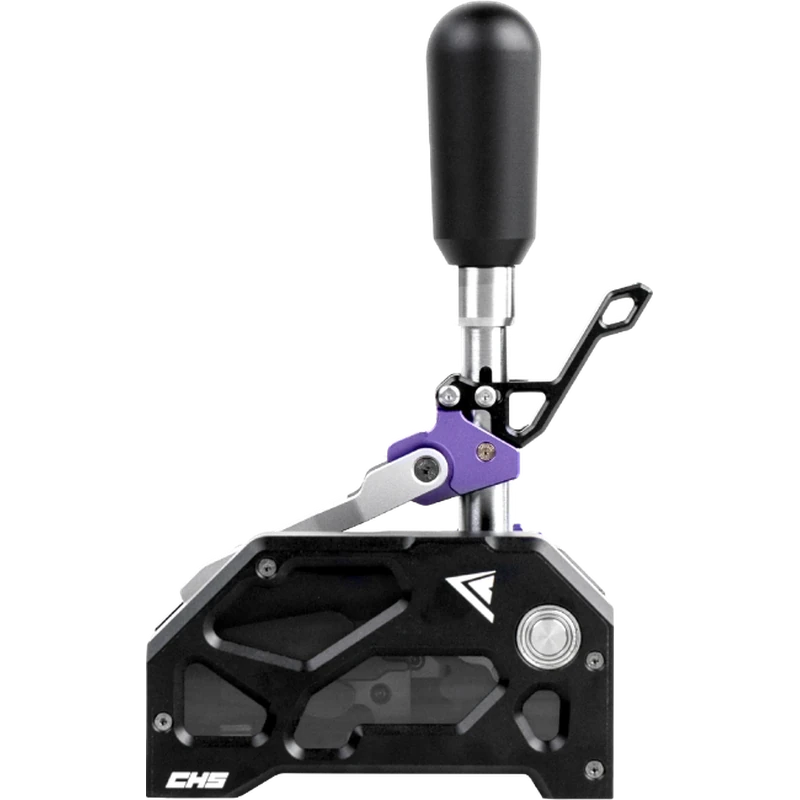

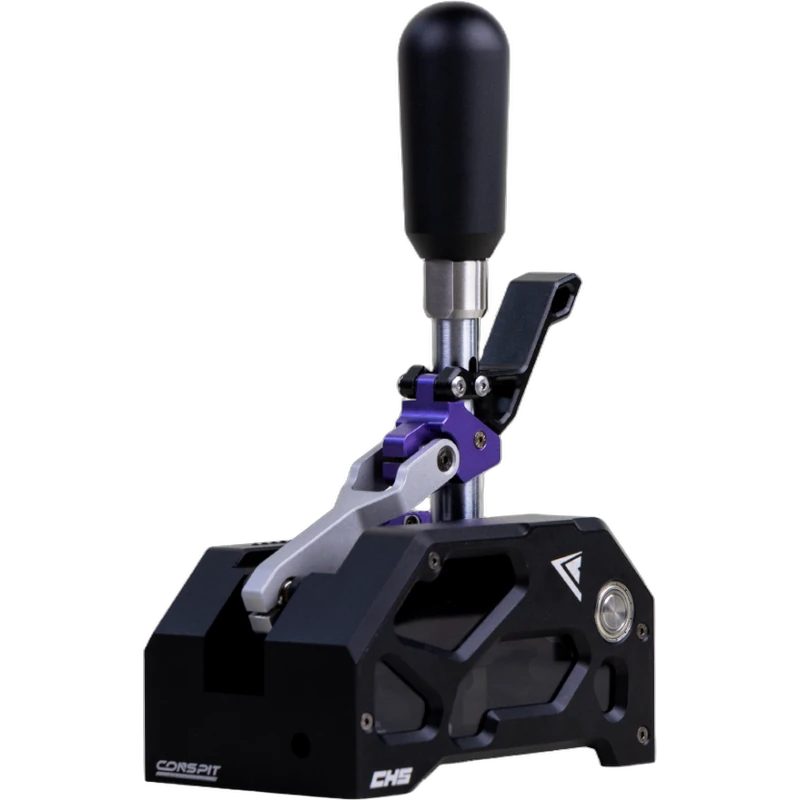

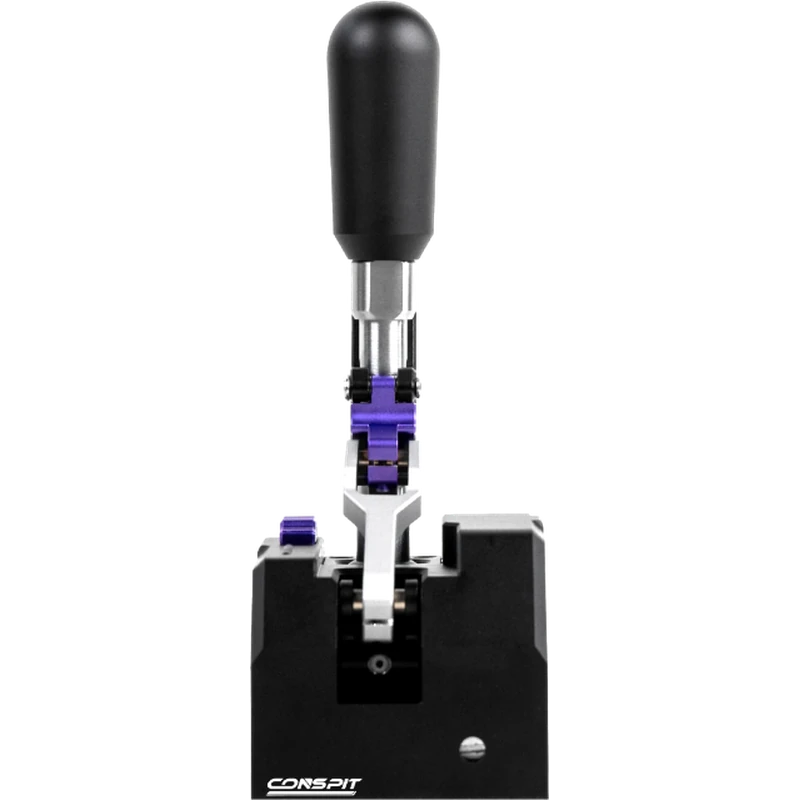

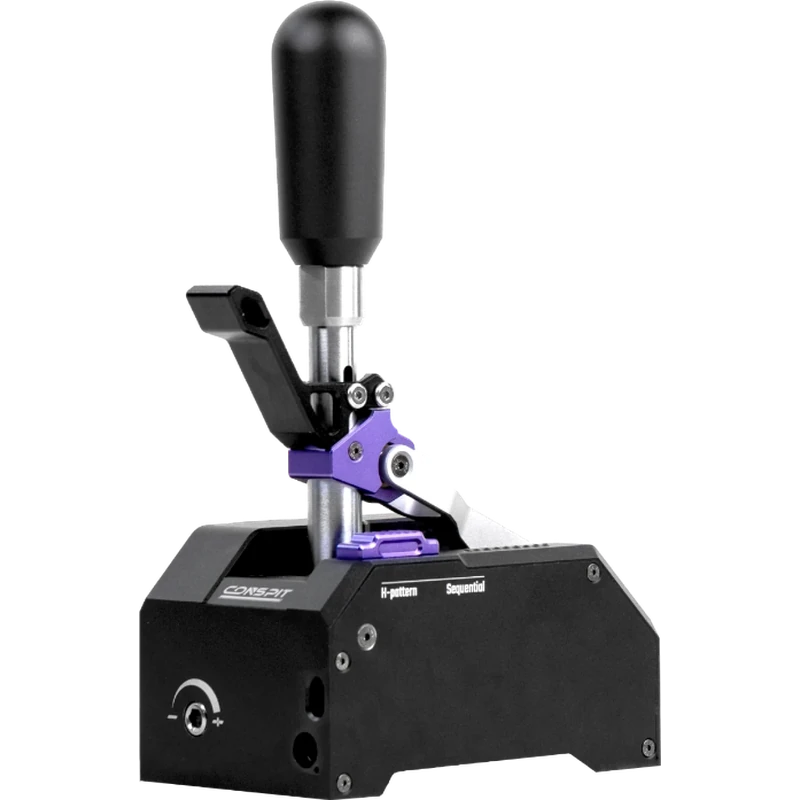

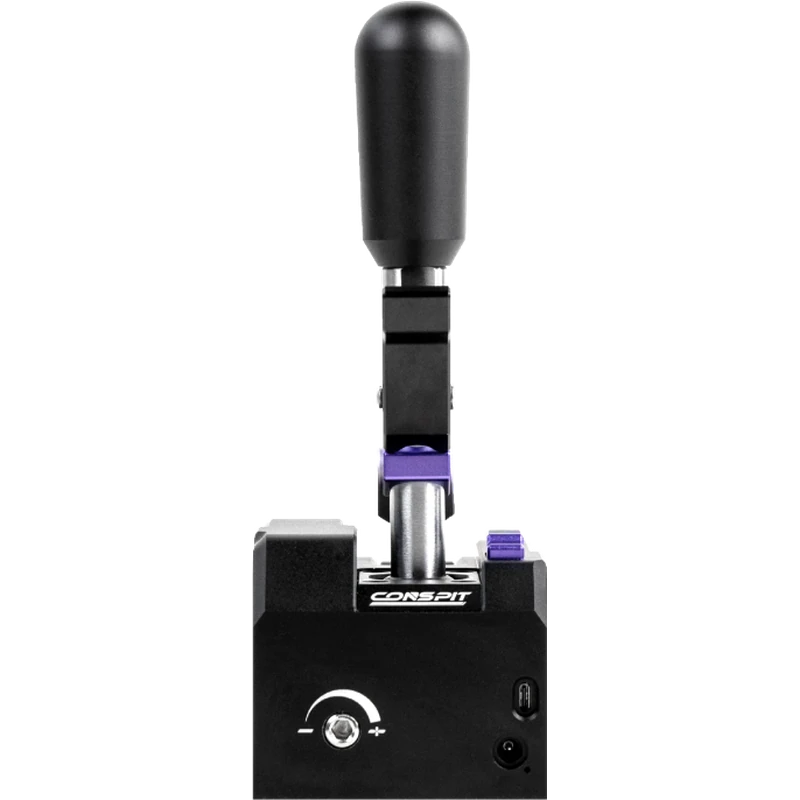

The CONSPIT CHS is a dual-mode shifter that combines a 7+R H-pattern gate and a sequential +/- shifter in a single full-metal unit, built for sim racers who drive everything from road and GT cars to sequential race cars and do not want two separate shifters on their rig. It is built around CONSPIT‘s Dual-Trace mechanical architecture, where each mode follows its own dedicated motion path rather than one mechanism being restricted to imitate the other, so the H-pattern keeps a clear, solid gate feel and the sequential mode keeps a direct, crisp action.
Shift force is adjustable from 3 to 10 kg with a hex wrench, a wide range that lets the CHS feel light and quick or heavy and mechanical. The H-pattern mode offers a full 38 mm / 12° throw, while the sequential mode uses CONSPIT‘s SnapShift asymmetric short-throw design, with a slightly shorter forward downshift than backward upshift for quicker, more defined downshifts, and both modes share a 12 mm / 4.5° engagement point. A built-in tunable damping system reduces vibration and mechanical noise, and you can set it lighter for a more direct response or heavier for a more solid shift. Hall magnetic sensors read every input, and the mechanism has been validated over 1,000,000 cycles, with key working parts made from heat-treated 45# steel for long-term consistency.
The one-piece aluminum alloy chassis keeps the whole mechanism solid under high force, and its compact 95 x 165 mm footprint leaves more room next to it for a handbrake. A slider switches between H-pattern and sequential modes in seconds, both modes can be bound in-game at the same time, and a dedicated lockout trigger gives access to reverse and 7th gear. Nine RGB LEDs built into the body can show the current gear, RPM shift lights or status indicators through CONSPIT Link 2.0, or telemetry through SimHub. A clear side window shows the mechanism at work, with a dark-tinted window included, and a 50 mm extension link raises the knob from 255 to 305 mm for easier sequential shifting. The CHS connects directly to a PC over USB-C.
